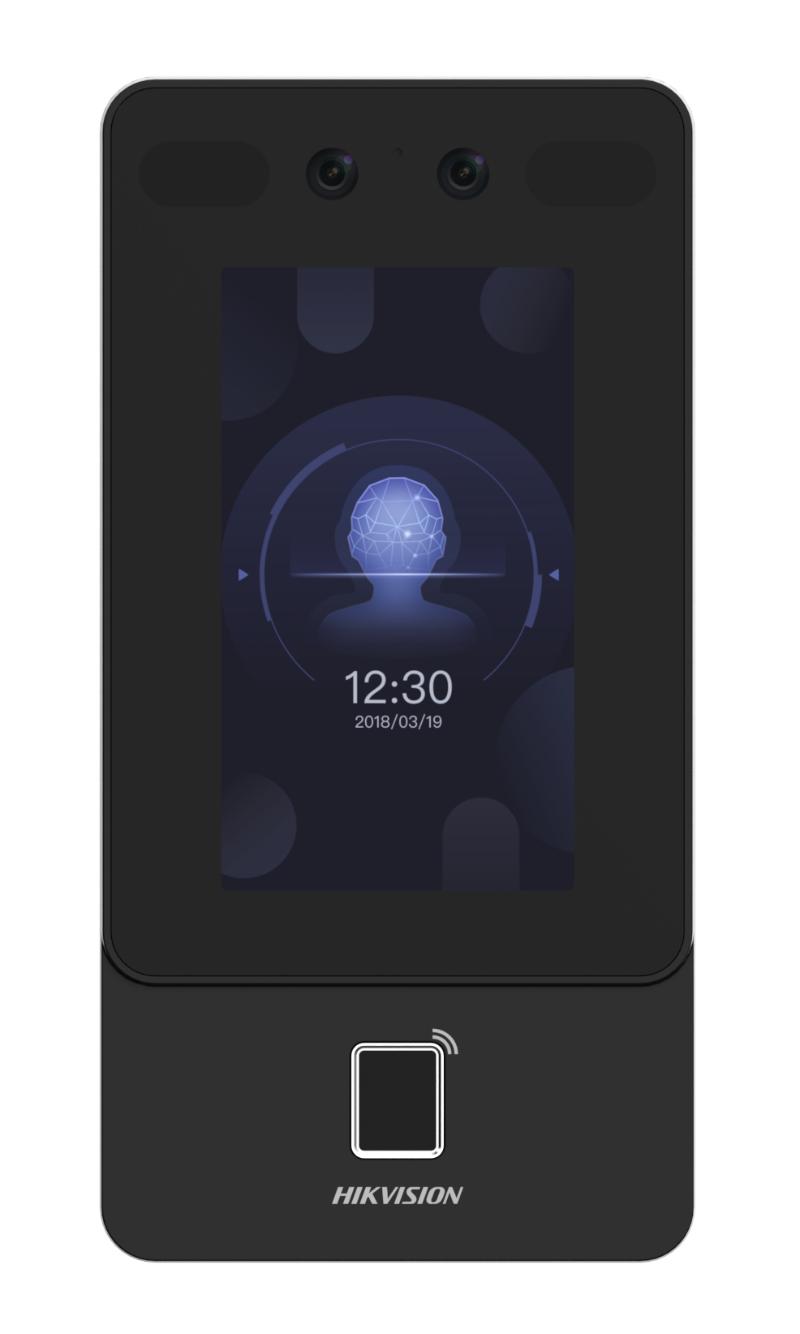

HIKVISION DS-K1T342MFX HIK ACCES CONTROL FACE and FINGER With LAN (Face/kartu/finger)
Short Description:
DS-K1T342MFX is a biometric access control terminal from Hikvision that supports facial recognition, fingerprint authentication, and RFID/Mifare smart cards. Equipped with a built-in LAN (TCP/IP) interface, it enables seamless integration with centralized access control software. It features a 4.3″ LCD touch screen and can be used as both an access controller and a standalone attendance terminal.
Spesification
- Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
- Two-way audio with client software, indoor station, and main station; Supports TCP/IP
- Supports ISAPI, ISUP5.0
- Configuration via the web client
- Face Recognition Distance: 0.3 m to 1.5 m
- Duration ＜ 0.2 s/User
- Accuracy rate ≥ 99%
- Supports mask recognition
Technical data
| Screen Size | 4.3 inch |
| Operation Method | Capacitive touch screen |
| Display Type | LCD |
| Camera / Lens | 2 lenses (2 MP resolution) |
| Audio | Noise suppression and echo cancellation |
| Network | Wired network (RJ-45, 10/100 Mbps self-adaptive) |
| Lock Control | 1 |
| Exit Button Input | 1 |
| Door Contact Input | 1 |
| Tamper Input | 1 |
| RS-485 | 1 (Half duplex, Hikvision protocol) |
| Wiegand | 1 (Hik 26bit / Hik 34bit) |
| USB | 1 |
| Card Type | M1 Card |
| Card Frequency | 13.56 MHz |
| Power Supply | 12 VDC, 1 A (power adapter included) |
| Working Temperature | -30 °C to +60 °C (-22 °F to 140 °F) |
| Working Humidity | 0 to 90% (non-condensing) |
| Dimensions | 91.3 × 181.3 × 24.5 mm (3.59″ × 7.14″ × 0.96″) |
| Installation | Wall mounting |
| Net Weight | 0.36 kg (0.79 lb) |
| Gross Weight | 0.93 kg (2.05 lb) |
| Languages | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean |
| Supported Platforms | Hik-ProConnect, HikCentral Professional |
| Additional Function | Face anti-spoofing |
