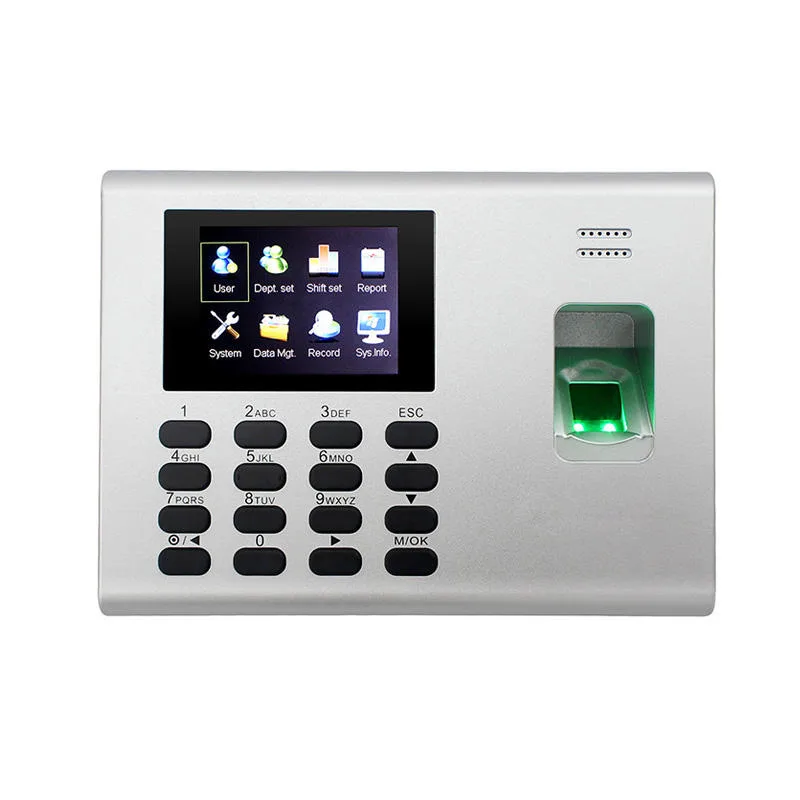

Mesin Absensi Fingerprint Access Door Magic MP340 (Kartu/Finger/Pin)

Short Description:

MP340 is a multifunction biometric terminal that combines fingerprint recognition, RFID card authentication and PIN verification for door access control and time attendance. It includes a built-in relay for electric lock control and supports TCP/IP communication for connection to management software. Designed for small and medium size installations, the MP340 provides secure access and attendance logging in a single device.

Spesification

Technical Data

Spesification

  • 2.8” TFT color display Screen.
  • Intuitive and stunning UI
  • Interface operation adopts modularized hierarchial design
  • Simpler, better, and more logical
  • Stores up to 1,000 fingerprint and 80,000 records.
  • Faster matching speed: less than 1 second.

Technical data

Fingerprint Capacity
1000 templates
Card Capacity
1000(optional)
Transaction Capacity
80,000
Hardware Platform
ZEM510
Sensor
Optical Sensor
Algorithm Version
Finger v10.0
Communication
TCP/IP,USB-client
Optional Functions
ID/Mifare/HID card reader
Display
2.8 inches TFT Screen
Power Supply
12V DC 2A
Operating Temperature
0 C- 45 C
Operating Humidity
20%-80%
Dimension
184*136*37.6mm
Gross Weight
0.90 kg
