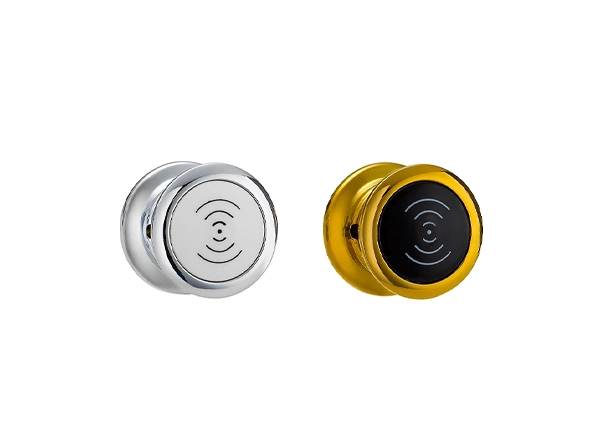

JCE1204 Electronic Cabinet / Locker Lock
Short Description:
JCE1204 is an electronic lock designed for cabinets, lockers, and storage units. It supports RFID card access (125 kHz EM / ID or optional Mifare) and provides secure standalone operation. The lock features a durable ABS or metal housing, LED and buzzer indicators for status feedback, and battery-powered operation for easy installation without wiring.
Spesification
- Product name Electronic RFID card lock
- JCE1204 RFID Card Locker Lock is made of zinc alloy material.
- Bouncing function: when the lock opened by ID card, the cabinet door will be bounced automatically
- Card in silicone wristband– fully waterproof, moisture proof, anti-corrosion, heat-resistant.
- External power interface(Audio interface)
- OEM service: Customized logo, number on the lock and wristband.
Technical data
| Model | JCE1204 |
|---|---|
| Product name | Electronic RFID card lock |
| Color | silver, golden |
| Front lock case material | zinc alloy + arcylic |
| Back mortise material | Plastic |
| Card type | 125khz ID card, 13.56mhz mifare card |
| Card capacity | 12pcs |
| Power supply | 4pcs AA batteries |
| External power interface | Yes |
| Static power consumption | ＜5μA |
| Dynamic power consumption | about 200mA |
| Working temperature | -30~80℃ |
| Working humidity | 95% |
| Battery life | Open door for 2000 times |
| Warranty | 3 years |
