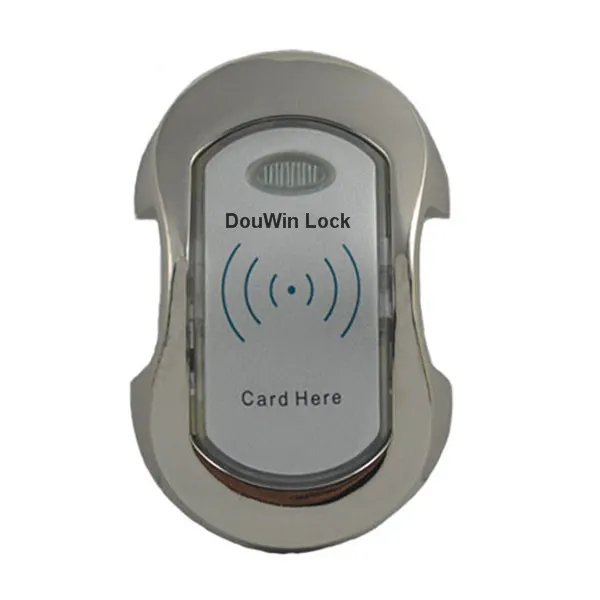

3798MFS Electronic Locker Lock
Short Description:
3798MFS is an electronic locker lock designed for secure access in gyms, schools, offices, and other facilities. It uses RFID card technology (125 kHz EM / ID or optional Mifare) to grant authorized access and can operate in standalone mode. The lock features a durable ABS or metal housing, battery-powered operation, and LED/buzzer indicators for user feedback.
Spesification
- Product Name: Gust Self-help occupied all the lockers
- Product Model: 3798MFS
- Authentication : RFID card (125 kHz EM / ID or Mifare)
- Lock Type : Electronic locker lock
- Power Supply : 3 × AA batteries
- Battery Life : Up to 20,000 openings
Technical data
| Model | 3798MFS |
| Lock Type | Electronic locker lock |
| Authentication | RFID card (125 kHz EM / ID or Mifare) |
| Operating Mode | Standalone (offline) |
| User Capacity | 1,000 users |
| Power Supply | 3 × AA batteries |
| Battery Life | Up to 20,000 openings |
| Indication | LED & Buzzer (access granted / denied / low battery) |
| Housing Material | ABS / Metal |
| Protection Rating | IP54 (splash resistant) |
| Operating Temperature | –20 °C to +60 °C |
| Dimensions | 120 × 60 × 25 mm |
