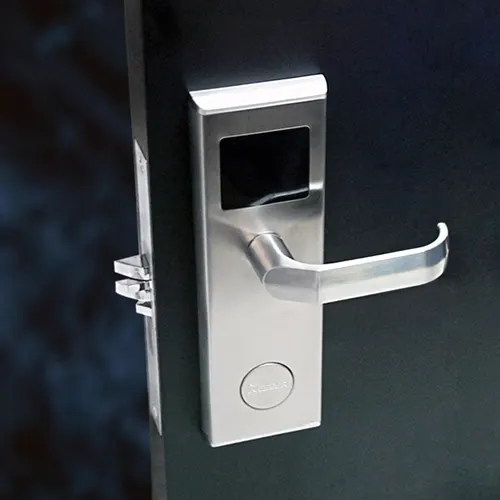

L5218 RFID Hotel Door Lock
Short Description:
L5218 is an electronic hotel door lock designed for modern hospitality environments. It uses 13.56 MHz Mifare smart cards for secure access and features a robust stainless-steel handle with anti-corrosion treatment. Powered by 4× AA batteries, it supports up to 20,000 openings per battery set and includes a mechanical key override for emergency access. The lock is compatible with hotel management software for efficient card issuance and access control.
Spesification
- Model: L5218M1
- Power: LR6 (AA)battery x 4pcs
- Communication: 13.56MHz RFID（with keycard)/infrared (with LMA or WDR)
- Package: 10pcs/Carton at 74.0X42.0X32.0CM
- Software: XEEDER Hotel lock system™
Technical data
| Model | L5218 |
| Lock Type | RFID card lock (hotel / hospitality) |
| Card Technology | 13.56 MHz Mifare (ISO14443A) |
| Material | Stainless steel handle + zinc alloy panel |
| Power Supply | 4 × AA batteries |
| Battery Life | Up to 20,000 openings |
| Emergency Override | Yes (mechanical key) |
| Indication | LED & Buzzer (access granted / denied / low battery) |
| Software Compatibility | Hotel lock management software |
| Door Thickness | 38 – 60 mm |
| Installation Standard | ANSI mortise |
| Operating Temperature | –20 °C to +60 °C |
