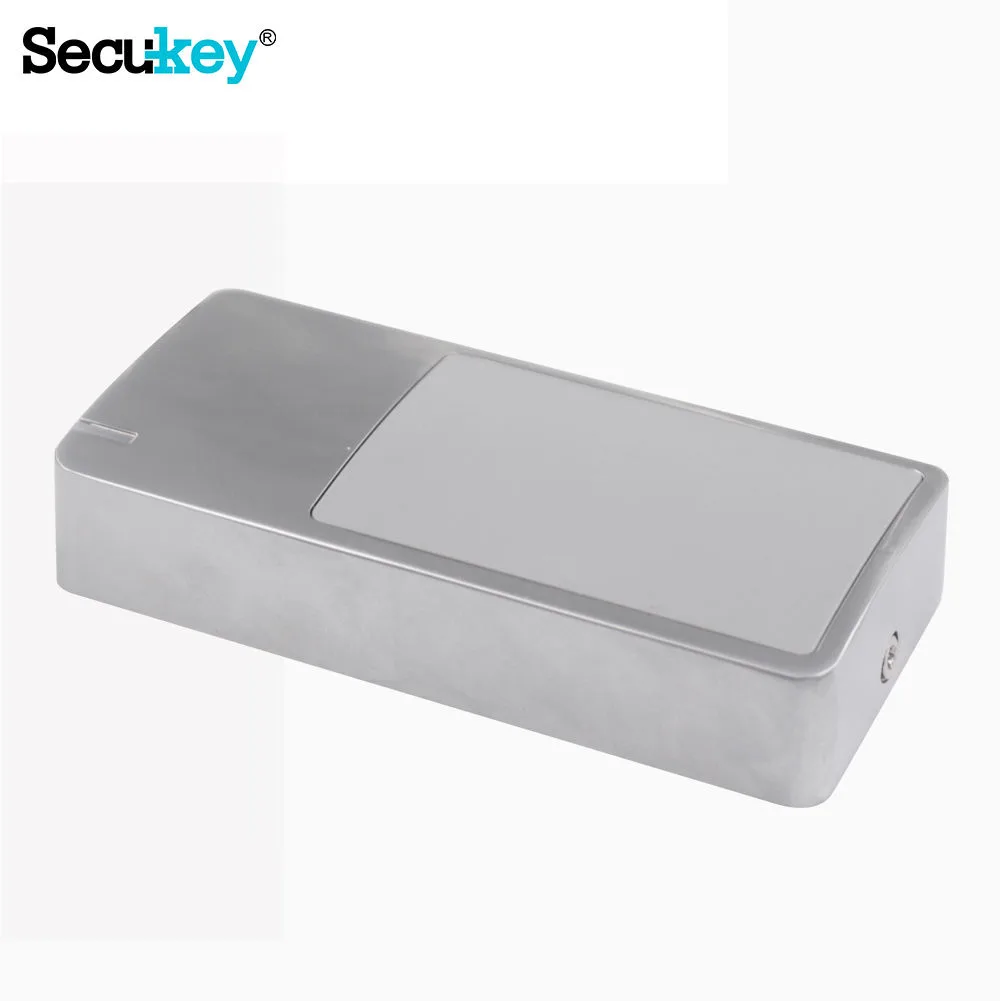

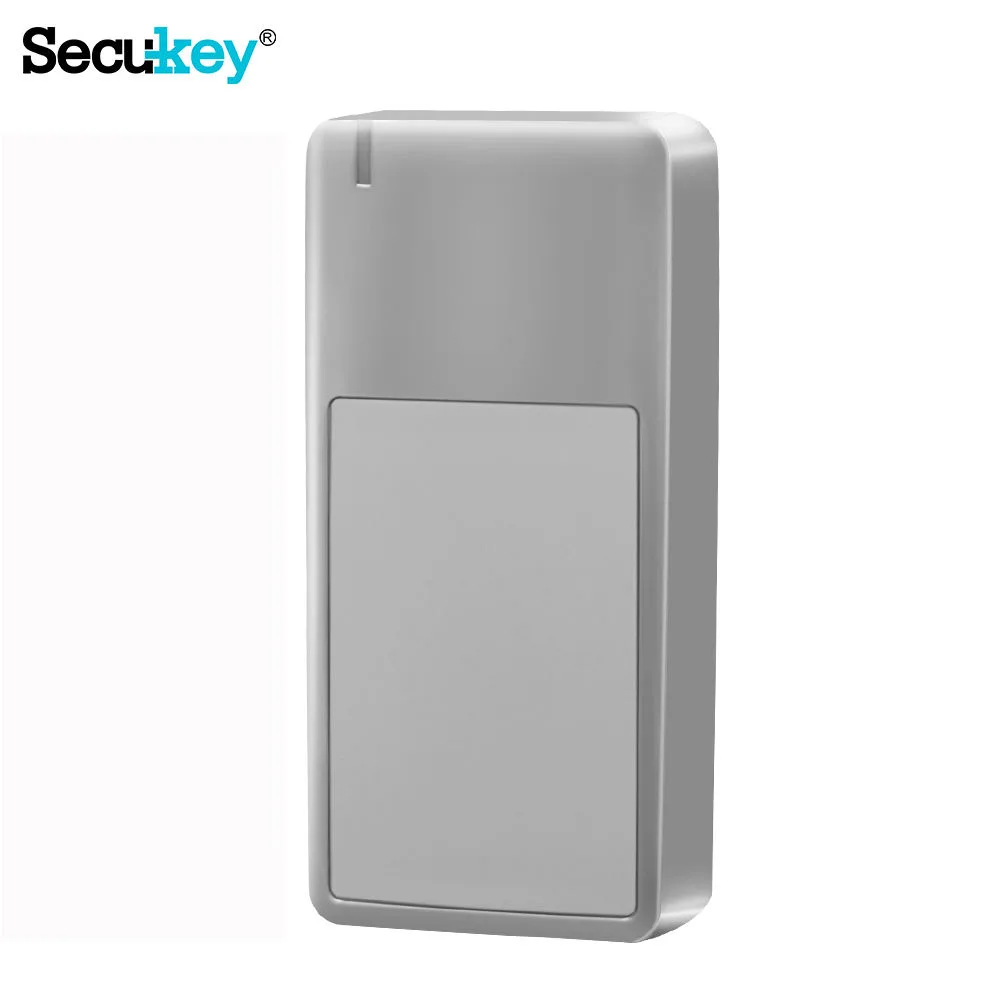

X2-RX Metal Wiegand Reader (EM + Mifare)
Short Description:
X2-RX is a dual-frequency RFID access control reader supporting 125 kHz EM cards and 13.56 MHz Mifare/NFC cards. Its vandal-resistant metal housing and IP66 waterproof rating make it ideal for indoor and outdoor installations. The reader provides Wiegand output (default 26-bit, expandable up to 58-bit) and supports external LED and buzzer signaling for secure access control.
Spesification
- protocol: ISO 14443A
- Working voltage: 9~18V DC
- Working Temperature: -40 oC ~ 60 oC (-40 oF ~ 140 oF)
- Frequency: 125KHz
- reading distance: 2~6 cm
Technical data
| Model | X2-RX |
| Supported Card Types | 125 kHz EM / 13.56 MHz Mifare (Classic, Plus, DesFire, Pro, UltraLight, Class 4K, NFC, CPU) |
| Wiegand Output | 26-bit (default), expandable up to 58-bit |
| Reading Distance | 3–8 cm |
| External LED & Buzzer | Yes |
| Housing Material | Vandal-resistant metal |
| Weather Resistance | IP66 (dust & water resistant) |
| Operating Voltage | 9–18 V DC |
| Operating Temperature | –40 °C to +60 °C |
| Standby Current | < 25 mA |
| Dimensions | 103 × 48 × 19 mm |
