SF7 Standalone RFID Access Control Reader (EM Version)
Short Description:
SF7 is a standalone RFID access control reader supporting 125 kHz EM/ID cards. It includes an integrated relay to directly control a door lock or turnstile and can store up to 2,000 users. The unit features IP66 weather protection, tamper detection (LDR sensor), and supports both pulse and toggle operating modes. Its compact design makes it ideal for secure indoor or outdoor access control applications.
Spesification
- Special Features: Waterproof / Weatherproof
- Model Number: S7
- Type: Card, Fingerprint
- Product name: Mini Fingerprint Access Control
- Proximity Card Reader: 125KHz EM card
- Operating Temperature: -25°C ~ 60°C (-13°F ~ 140°F)
- Operating Voltage: 12V DC
Technical data
| Model | SF7 |
| Card Type | 125 kHz EM / ID |
| User Capacity | 2,000 users |
| Relay Output | 1 relay (NO / NC / COM) |
| Control Modes | Pulse mode, Toggle mode |

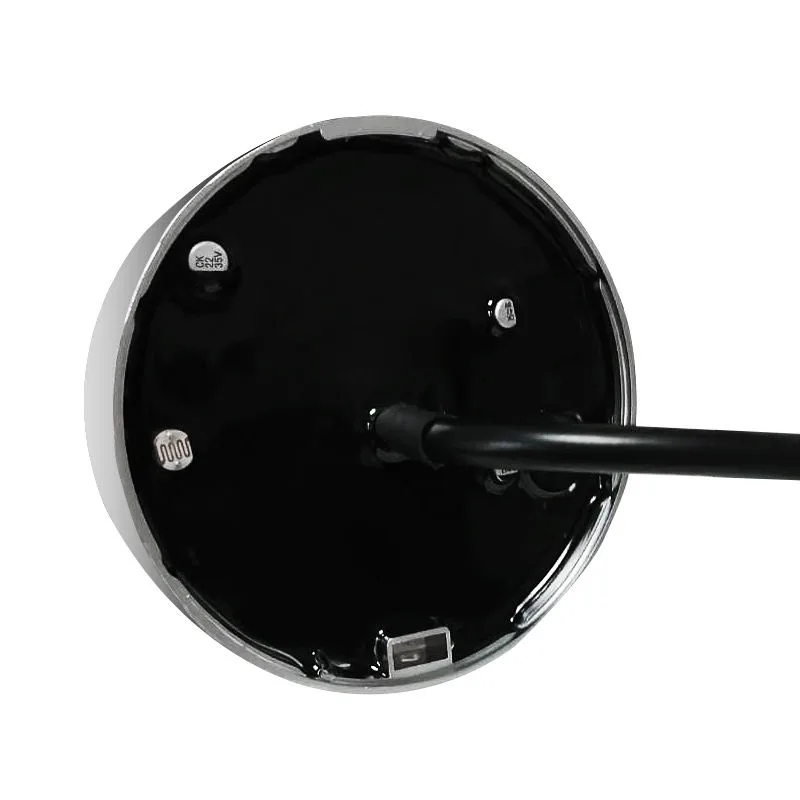

| Tamper Detection | Built-in LDR |
| Operating Voltage | 9–18 V DC |
| Reading Distance | 3–8 cm |
| Weather Resistance | IP66 (dust & water resistant) |
| Operating Temperature | –40 °C to +60 °C |
| Housing Material | ABS plastic |
| Dimensions | 115 × 70 × 22 mm |
