S7-EM Metal Wiegand Reader
Short Description:
S7-EM is a 125 kHz RFID access control reader designed for EM/ID cards. It features an ultra-slim, vandal-resistant metal housing and IP66 weather protection for indoor or outdoor installation. The unit supports Wiegand 26-bit output (optional 34/37-bit), and includes external LED and buzzer control. It is ideal for secure applications requiring a durable and compact RFID reader.
Spesification
- Special Features: Waterproof / Weatherproof
- Model Number: S7-EM
- Card: EM Card
- User Capacity: 2000
- Read Range: 3~10cm
- Operating Temperature: -40 ℃~ 60 ℃
- Operating Voltage: 9~18V DC
- Brand Name: Secukey/OEM

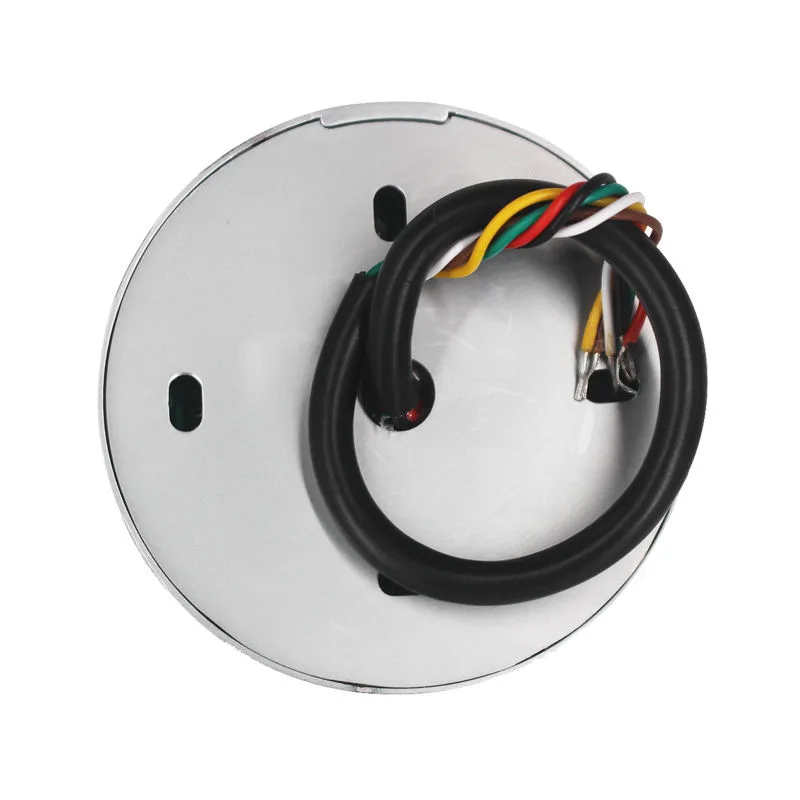

- Wiring Connections: Relay output, exit button
Technical data
| Model | S7-EM |
| Card Type | 125 kHz EM / ID |
| Output Format | Wiegand 26-bit (optional 34 / 37-bit) |
| Reading Distance | 3 – 8 cm |
| External LED & Buzzer | Yes |
| Housing Material | Slim vandal-resistant metal |
| Weather Resistance | IP66 (dust & water resistant) |
| Operating Voltage | 9–18 V DC |
| Operating Temperature | –40 °C to +60 °C |
| Standby Current | < 25 mA |
| Dimensions | 120 × 44 × 20 mm |
