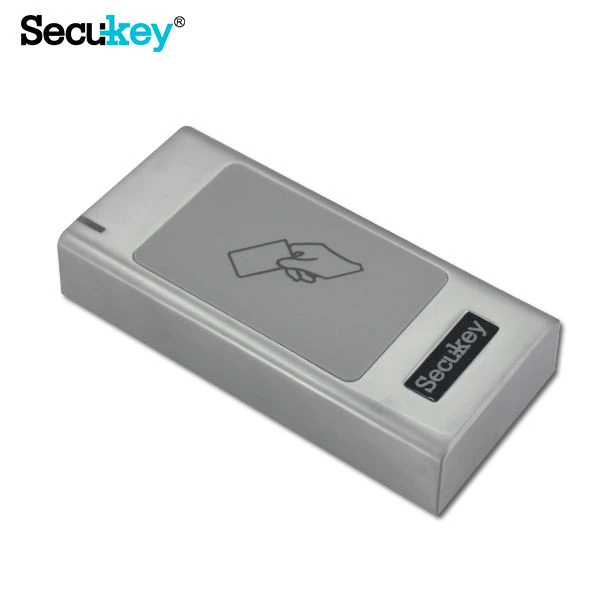

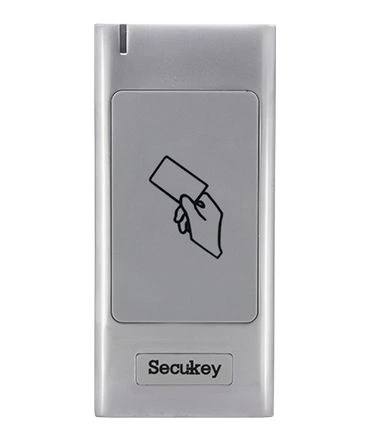

S6-RX Metal Wiegand Reader (EM/HID/Mifare)
Short Description:
S6‑RX is a dual-frequency RFID access control reader that supports both 125 kHz (EM & HID) and 13.56 MHz (Mifare, Mifare Plus, DesFire, Mifare Pro, UltraLight, Class 4K, NFC, CPU) cards. Featuring a vandal-resistant metal casing and an IP66 waterproof rating, it is engineered for reliable use in harsh indoor and outdoor environments. The reader outputs Wiegand signals at 26 bits by default (expandable up to 58 bits), and includes external LED and buzzer control for adaptable signaling.
Spesification
- Model: S6‑RX
- Wiegand Output: 26 bits (default), up to 58 bits on request
- Reading Distance: 3–8 cm
- External Controls: LED and buzzer outputs supported
- Housing: Robust vandal-resistant metal
- Protection Rating: IP66 (water & dust resistant)
- Operating Voltage: 9–18 V DC
- Operating Temperature: –40 °C to +60 °C
- Standby Current: < 25 mA
- Dimensions: L103 × W48 × H19 mm
Technical data
| Model | S6-RX |
| Supported Card Types | 125 kHz EM & HID, 13.56 MHz Mifare (Classic, Plus, DesFire, Pro, UltraLight, Class 4K), NFC, CPU |
| Wiegand Output | 26 bits (default), expandable up to 58 bits |
| Reading Distance | 3–8 cm |
| External LED & Buzzer Control | Yes |
| Housing Material | Vandal-resistant metal |
| Weather Resistance | IP66 (dust & water proof) |
| Operating Voltage | 9–18 V DC |
| Operating Temperature | –40 °C to +60 °C |
| Standby Current | < 25 mA |
| Dimensions | L103 × W48 × H19 mm |
