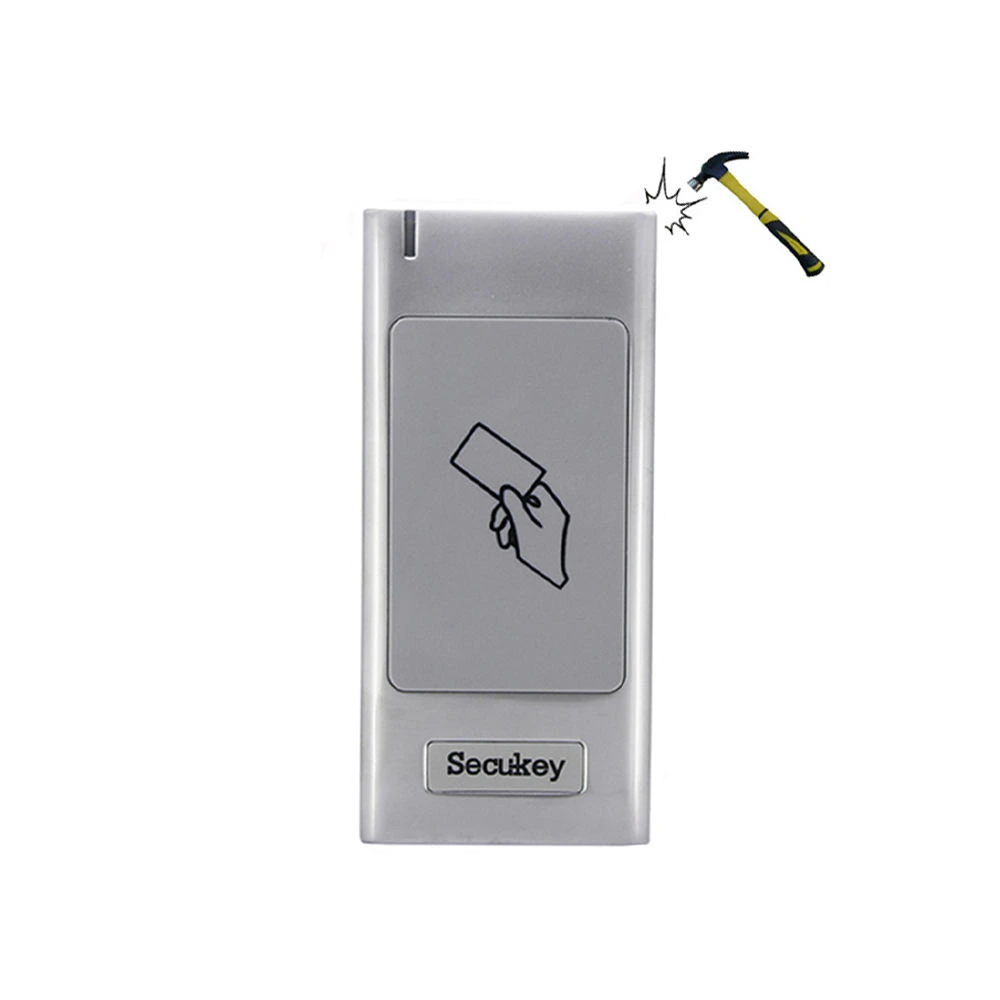

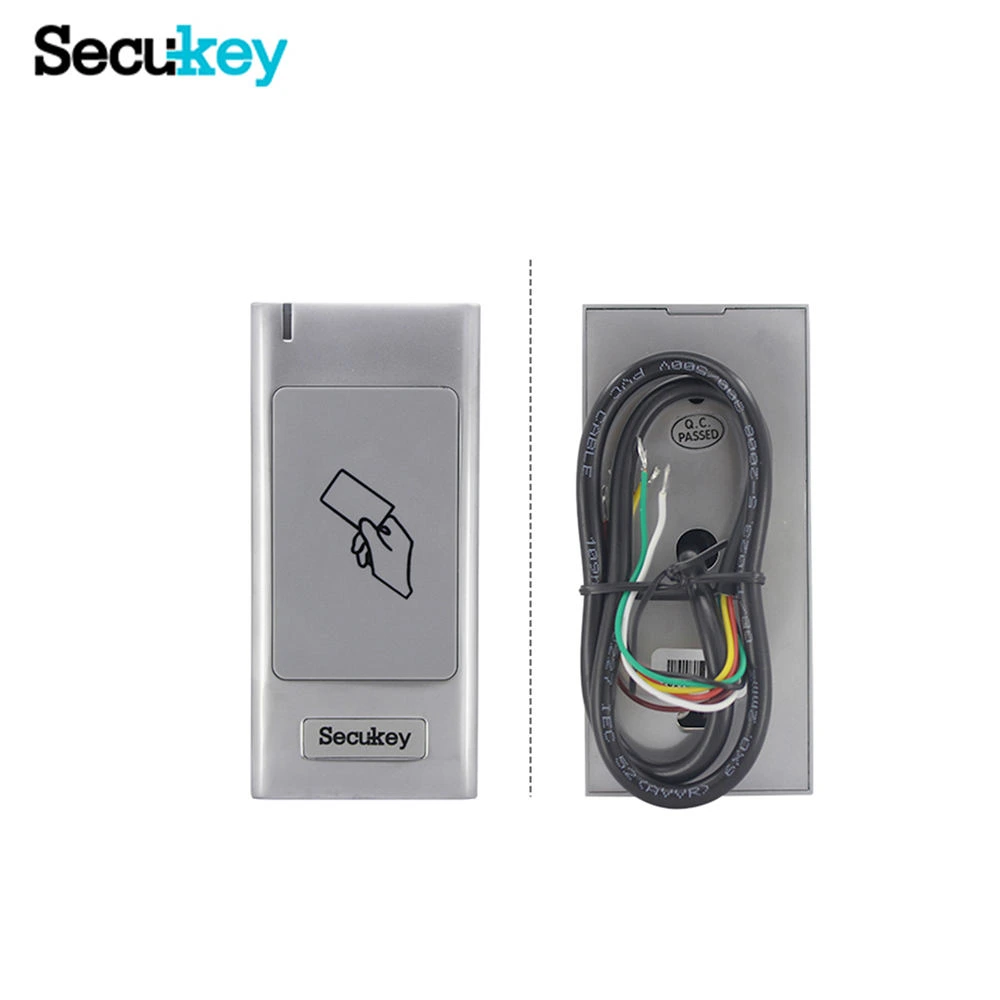

S6-R MF Metal Wiegand Reader (Mifare)
Short Description:
S6-R MF is an RFID access control reader operating at 13.56 MHz, compatible with various Mifare cards including Classic, Plus, DesFire, Pro, UltraLight, Class 4K, as well as NFC and CPU cards. It features a vandal-resistant metal casing with IP66 weatherproofing, suitable for indoor and outdoor installations in harsh environments. The reader supports Wiegand 34-bit output (optional 26–44, 56, 58-bit), external LED control, and external buzzer control.
Spesification
- Model: S6-R MF
- Card Type Supported: 13.56 MHz Mifare (Classic, Plus, DesFire, Pro, UltraLight, Class 4K), NFC, CPU
- Output Format: Wiegand 34-bit (optional 26–44, 56, 58-bit)
- Reading Distance: 3–8 cm
- External LED & Buzzer Control: Yes
- Casing: Vandal-resistant metal
- Weather Resistance: IP66 (dust and water-resistant)
- Operating Temperature: -40 °C to 60 °C
- Operating Voltage: 9–18 V DC
- Standby Current: < 25 mA
- Dimensions: L103 × W48 × H19 mm
- UID Identification: 7 bytes / 4 bytes
Technical data
| Parameter | Specification |
|---|---|
| Model | S6-R MF |
| Card Type | 13.56 MHz Mifare (Classic, Plus, DesFire, Pro, UltraLight, Class 4K), NFC, CPU |
| Output Format | Wiegand 34-bit (optional 26–44, 56, 58-bit) |
| Reading Distance | 3–8 cm |
| External LED & Buzzer | Yes |
| Casing | Vandal-resistant metal |
| Weather Resistance | IP66 (dust and water-resistant) |
| Operating Temperature | -40 °C to 60 °C |
| Operating Voltage | 9–18 V DC |
| Standby Current | < 25 mA |
| Dimensions | L103 × W48 × H19 mm |
| UID Identification | 7 bytes / 4 bytes |
