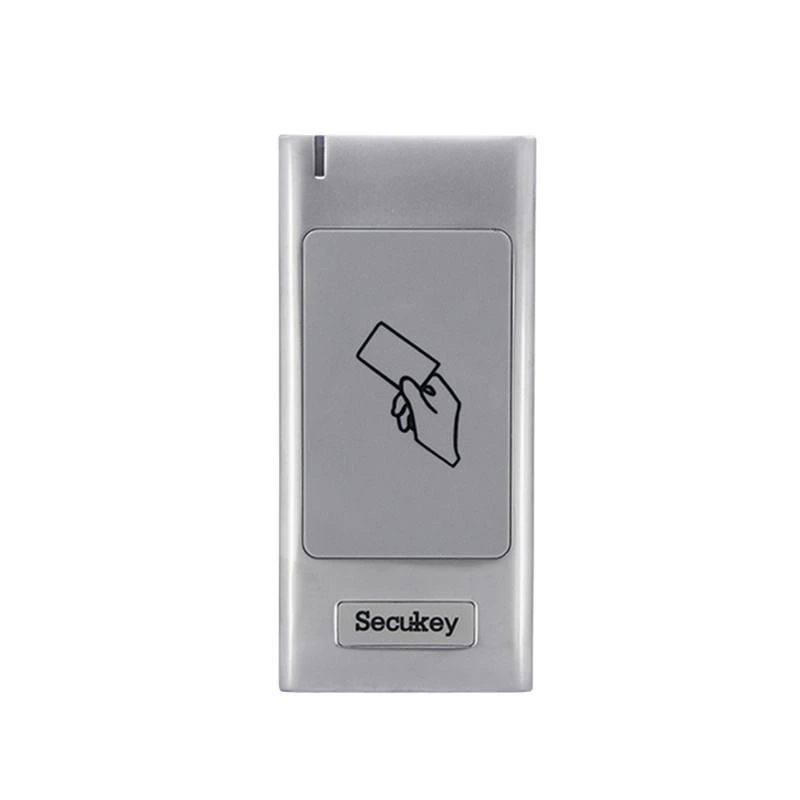

S6-R EM Metal Wiegand Reader
Short Description:
S6-R EM is an RFID-based access control reader operating at 125 kHz, compatible with EM/ID cards. It features a vandal-resistant metal casing with IP66 weatherproofing, making it suitable for indoor and outdoor installations in harsh environments. The reader supports Wiegand 26-bit output (optional up to 37-bit), external LED control, and external buzzer control.
Spesification
- Model: S6-R EM
- Card Type: 125 kHz EM/ID
- Output Format: Wiegand 26-bit (optional up to 37-bit)
- Reading Distance: 3–8 cm
- External LED & Buzzer Control: Yes
- Casing: Vandal-resistant metal
- Weather Resistance: IP66 (dust and water-resistant)
- Operating Temperature: -40 °C to 60 °C
- Operating Voltage: 9–18 V DC
- Standby Current: < 25 mA
- Dimensions: L103 × W48 × H19 mm
Technical data
| Model | S6-R EM |
| Card Type | 125 kHz EM/ID |
| Output Format | Wiegand 26-bit (optional up to 37-bit) |
| Reading Distance | 3–8 cm |
| External LED & Buzzer | Yes |
| Casing | Vandal-resistant metal |
| Weather Resistance | IP66 (dust and water-resistant) |
| Operating Temperature | -40 °C to 60 °C |
| Operating Voltage | 9–18 V DC |
| Standby Current | < 25 mA |
| Dimensions | L103 × W48 × H19 mm |
