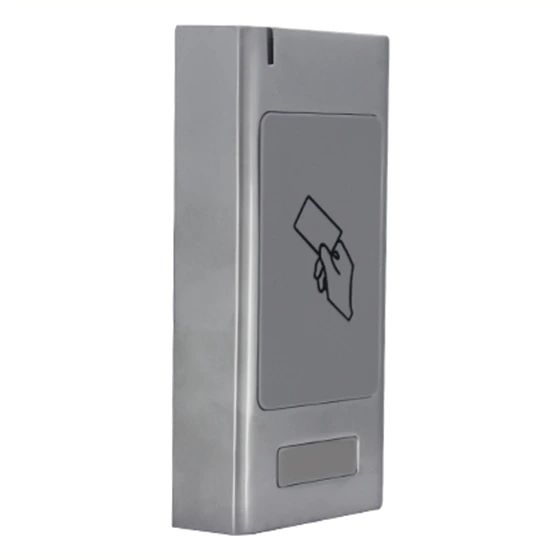

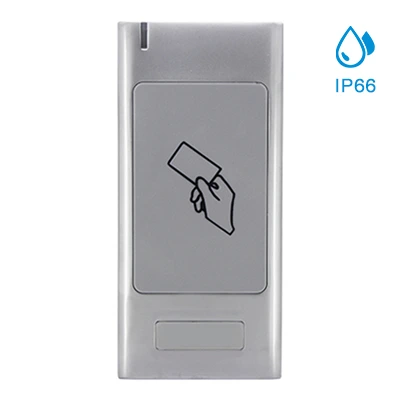

S6 EM Metal Wiegand Reader
Short Description:
S6-EM is a 125 kHz RFID access control reader designed for use with EM/ID proximity cards. It features a vandal-resistant metal housing and carries an IP66 weatherproof rating, making it suitable for both indoor and outdoor applications. The device supports Wiegand output (26-bit by default, optional 34/37-bit) and provides external control for LED and buzzer signals. It is a durable and reliable option for secure access control environments.
Spesification
- Model: S6-EM
- Card Type Supported: 125 kHz EM/ID proximity cards
- Output Format: Wiegand 26-bit (optional 34 / 37-bit)
- Reading Distance: 3–8 cm
- External LED & Buzzer: Supported
- Housing: Vandal-resistant metal body
- Weather Resistance: IP66 (dust and water resistant)
- Operating Temperature: –40 °C to +60 °C
- Operating Voltage: 9–18 V DC
- Standby Current: < 25 mA
- Dimensions: L103 × W48 × H19 mm
Technical data
| Model | S6-EM |
| Card Type | 125 kHz EM / ID |
| Output Format | Wiegand 26-bit (optional 34 / 37-bit) |
| Reading Distance | 3–8 cm |
| External LED & Buzzer | Yes |
| Housing Material | Vandal-resistant metal |
| Weather Resistance | IP66 (dust and water resistant) |
| Operating Temperature | –40 °C to +60 °C |
| Operating Voltage | 9–18 V DC |
| Standby Current | < 25 mA |
| Dimensions | L103 × W48 × H19 mm |
