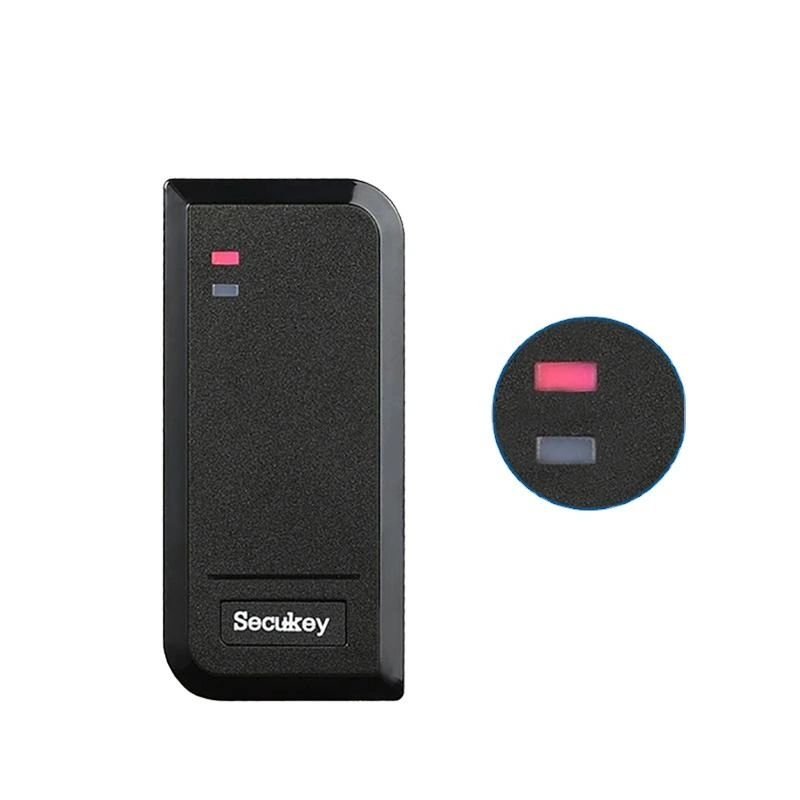

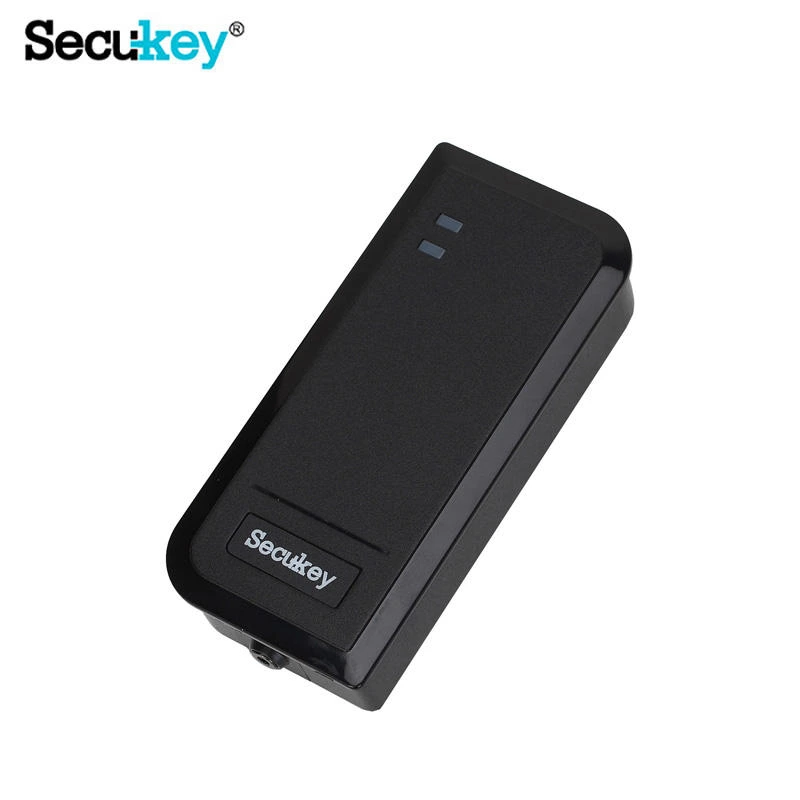

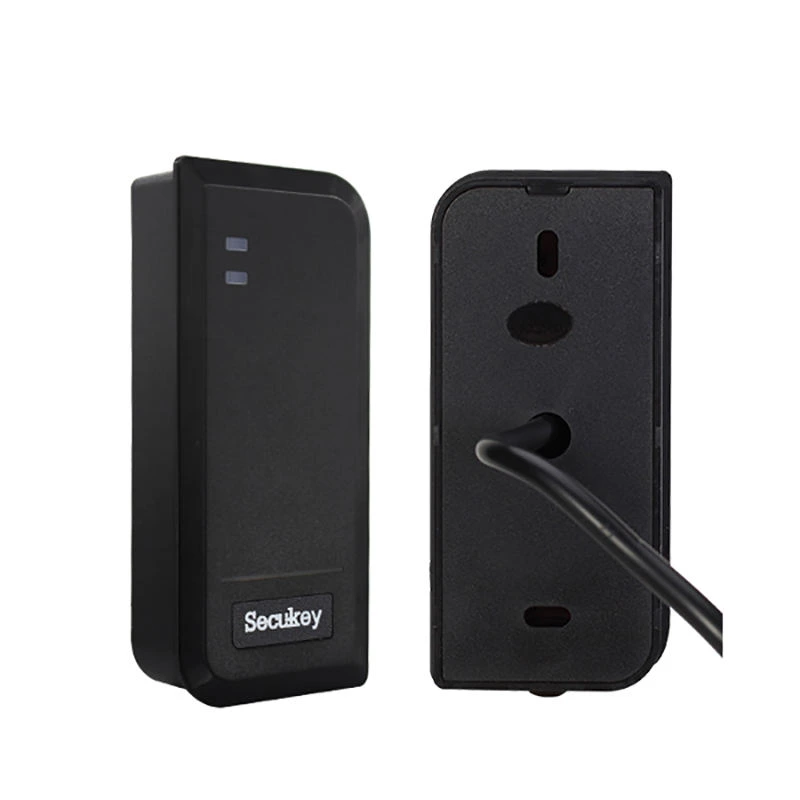

S2-X Wiegand Reader
Short Description:
S2-X is a versatile access control reader that supports both 125 kHz EM cards and 13.56 MHz Mifare cards (including Mifare Classic, Plus, DesFire, Pro, UltraLight, Class 4K, NFC, and CPU cards). Designed for indoor and outdoor installations, it features a waterproof IP66-rated casing. The reader accommodates multiple access modes including Card, PIN, Card + PIN, and Multi Cards, supporting up to 1000 users. It also supports two-door interlocking.
Spesification
- Model: S2-X
- Card Types Supported: 125 kHz EM, 13.56 MHz Mifare (Classic, Plus, DesFire, Pro, UltraLight, Class 4K, NFC, CPU)
- User Capacity: 1000 users
- Access Modes: Card, PIN, Card + PIN, Multi Cards
- PIN Length: 4–6 digits
- Wiegand Interface: Wiegand 26–44, 56, 58 bits input & output (default 26 bits)
- Relay Output: One relay
- Interlock Support: Yes (for two doors)
Technical data
| Model | S2-X |
| Card Types Supported | 125 kHz EM, 13.56 MHz Mifare (Classic, Plus, DesFire, Pro, UltraLight, Class 4K, NFC, CPU) |
| User Capacity | 1000 users |
| Access Modes | Card, PIN, Card + PIN, Multi Cards |
| PIN Length | 4–6 digits |
| Wiegand Interface | Wiegand 26–44, 56, 58 bits input & output (Default: 26 bits) |
| Relay Output | One relay |
| Interlock Support | Yes (supports two-door interlocking) |
| Weather Resistance | IP66 (dust and water-resistant) |
| Operating Temperature | -40 °C to 60 °C |
| Operating Voltage | 12–18 V DC |
| Idle Current | < 35 mA |
| Dimensions | L103 × W48 × H19 mm |
| Housing Material | ABS plastic |
| Color Options | Black (White optional) |
