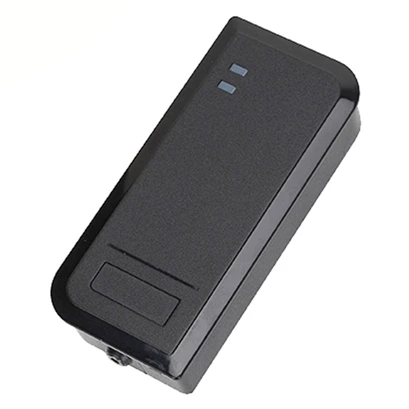

S2-RX Metal Wiegand Reader (Dual Frequency EM + Mifare)
Short Description:
S2-RX is a dual-frequency RFID access control reader designed to support both 125 kHz EM cards and 13.56 MHz Mifare/NFC cards. It features a vandal-resistant metal housing and IP66 weatherproof protection, making it suitable for harsh indoor or outdoor environments. The unit outputs Wiegand signals (default 26-bit, optional up to 58-bit) and includes connections for external LED and buzzer control.
Spesification
- Waterproof conforms to IP66
- Wiegand 26~37 bits output (default: 26bits)
- Card type: Hid card, EM card & Mifare card
- Reading range: 7 cm
- External LED Control & External Buzzer Control
Technical data
Operating Voltage | 9~24V DC |
Frequency | 125KHz & 13.56MHz |
Card Type | 125KHz – EM & Hid Card |
13.56MHz – Mifare Card (ISO 14443A Compatible) | |
Reading Distance | 7 CM |
Output Format | Wiegand 26 bits |
(26~37 bits available upon request) | |
Operating Temperature | -40℃ ~ 60℃(-40°F ~ 140°F) |
Standby Current | < 25mA |
Operating Humidity | 10%~95% RH |
Index of Protection | IP66 |
Dimensions | L103 x W48 x H19 (mm) |
