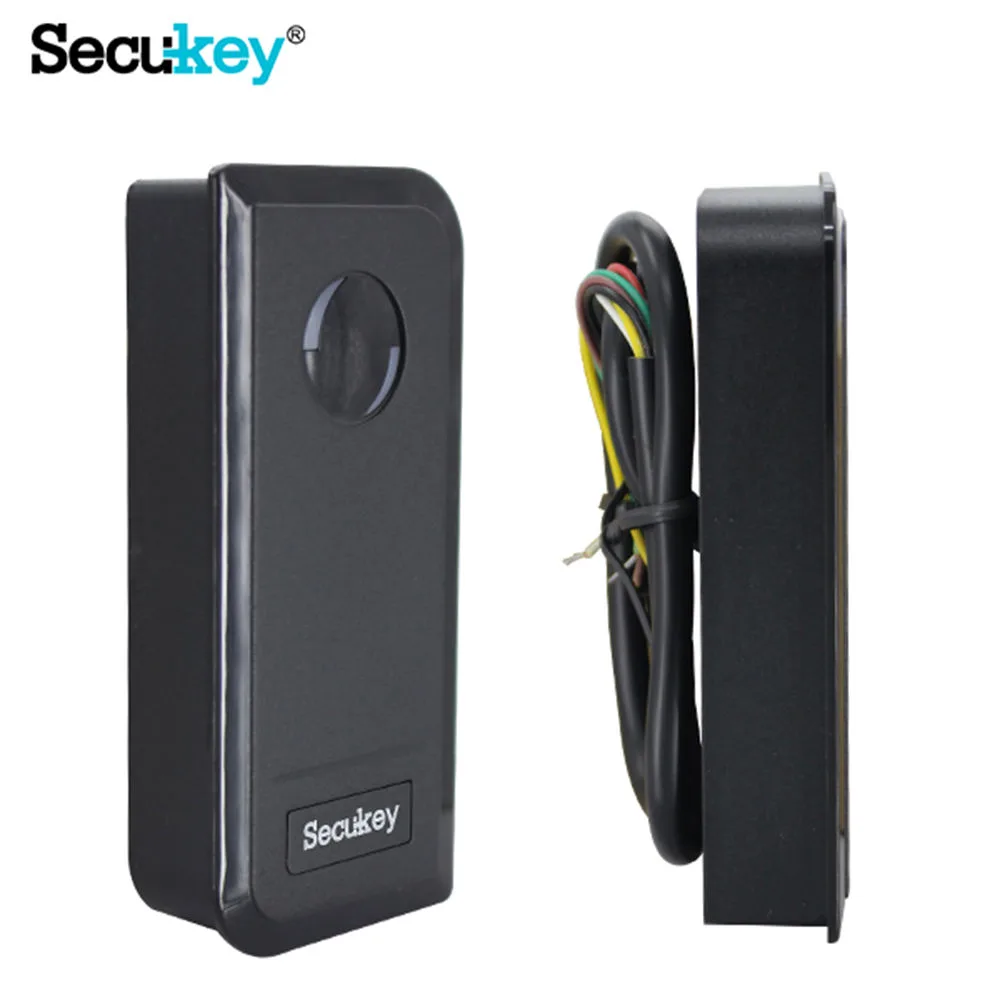

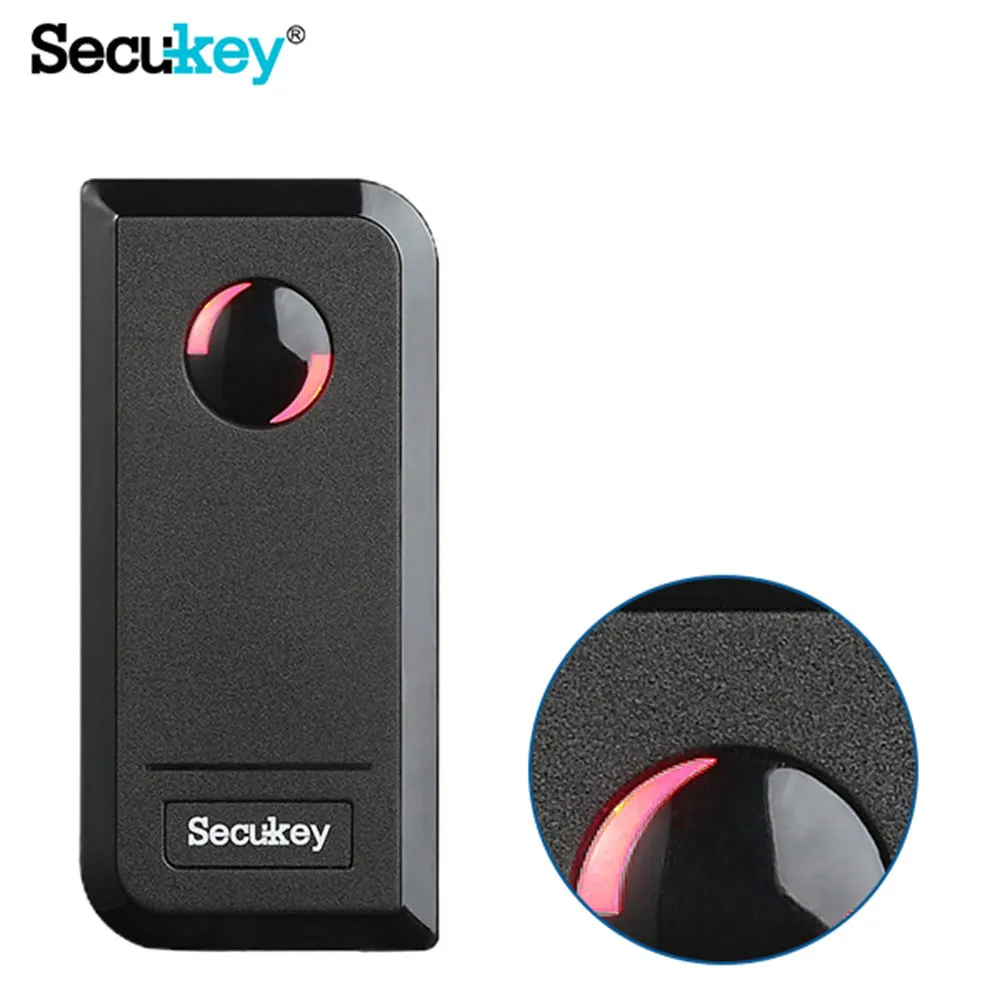

S1-RX EM Metal Wiegand Reader
Short Description:
S1-RX EM is a 125 kHz EM RFID access control reader with a robust metal housing. It is suitable for indoor and outdoor applications, featuring IP66 protection against dust and water. The reader outputs Wiegand signals (default 26-bit) and supports external LED and buzzer for status signaling, making it a durable and reliable option for secure access control systems.
Spesification
- Special Features: Waterproof / Weatherproof
- Model Number: S1-RX EM
- Operation System: Wiegand
- Material: ABS
- Product name: access control reader
- Reading Range: ≥3cm
- Card Type: ID Card & MF Card
Technical data
| Model | S1-RX EM |
| Card Type | 125 kHz EM / ID cards |
| Output Format | Wiegand 26-bit (optional 34 / 37-bit) |
| Reading Distance | 3–8 cm |
| External LED & Buzzer | Yes |
| Housing Material | Vandal-resistant metal |
| Weather Resistance | IP66 (dust & water resistant) |
| Operating Voltage | 9–18 V DC |
| Operating Temperature | –40 °C to +60 °C |
| Standby Current | < 25 mA |
| Dimensions | 103 × 48 × 19 mm |
