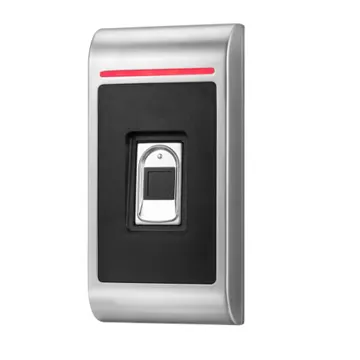

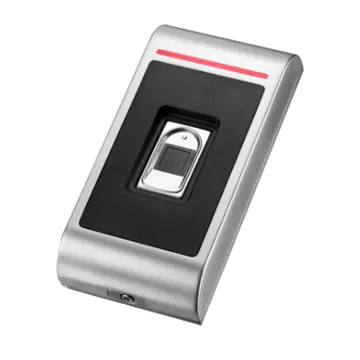

F602 IP68 Fingerprint Control
Short Description:
F602 is a standalone biometric access control terminal that supports both fingerprint and 125 kHz EM/ID card authentication. It includes a built-in relay for direct door lock control and can operate completely offline without a PC. The device features a durable housing, supports up to 1,000 fingerprint users, and is suitable for indoor or outdoor (covered) installations.
Spesification
- Metal case, anti-vandal
- Fingerprint access controller and reader, WG26 Input/output
- Capacity: 200 fingerprints and 500 cards
- Two accesses: card, fingerprint
Technical data
| Product Parameter | Parameter Description |
| S4A Model | F602 |
| Product Name | Metal & Waterproof Fingerprint Access Control |
| Card type | EM 125KHz |
| User Capacity | 10,000 users |
| Fingerprint Capacity | 200 |
| Working voltage | DC12V±10% |
| Reading Range | 3-6cm |
| Humidity | 20% to 90% RH |
| Door Opening Time | 0-99s(Adjustable) |
| Sleep electricity | ≤30mA |
| Static electricity | ≤80mA |
| Electric lock output | ≤3A |
| Short-circuit Protect | ≤100μS |
| Dimensions | 115x57x22mm |
