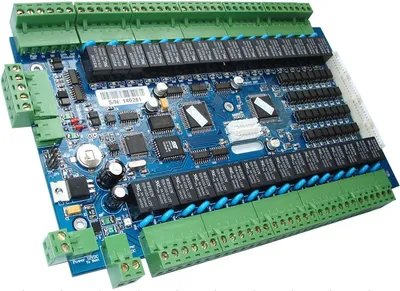

E05.NET--32 elevator controller RS485 + box
Short Description:
E05.NET–32 is a network-based (TCP/IP or RS485) elevator access controller designed to manage access for up to 32 floors/cabs. It supports two card readers simultaneously (Wiegand format 26/34/36/37/40 bits) and can store up to 120,000 users and 200,000 event logs. Ideal for office buildings or apartment elevators that require centralized access control and integration with security management software.
Spesification
- Model: E05.NET
- Control Mode: Computer & Manual
- Number of Card Readers: 2
- Card Reader Type: Wiegand 26/34/36/37/40 bit
- Communication: TCP/IP
- Controller Type: Two-way controller
- User Capacity: Up to 120,000 users
- Event/Alarm Capacity: Up to 200,000 events
- Additional Inputs: 1× Fire Alarm, 1× First-Floor Arrival Input
- Applications: Elevator or cabinet access control for buildings, integrated with centralized security management
Technical data
| Users | 120,000 |
| Event/ alarm event | 200,000 |
| Elevator button | 32 |
| Fire alarm input | 1 |
| 1st floor arrival input | 1 |
| Card reader | 1 |
| Reader type | wiegand 26/34/36/37/40 |
| Size | 218*135*32mm |
