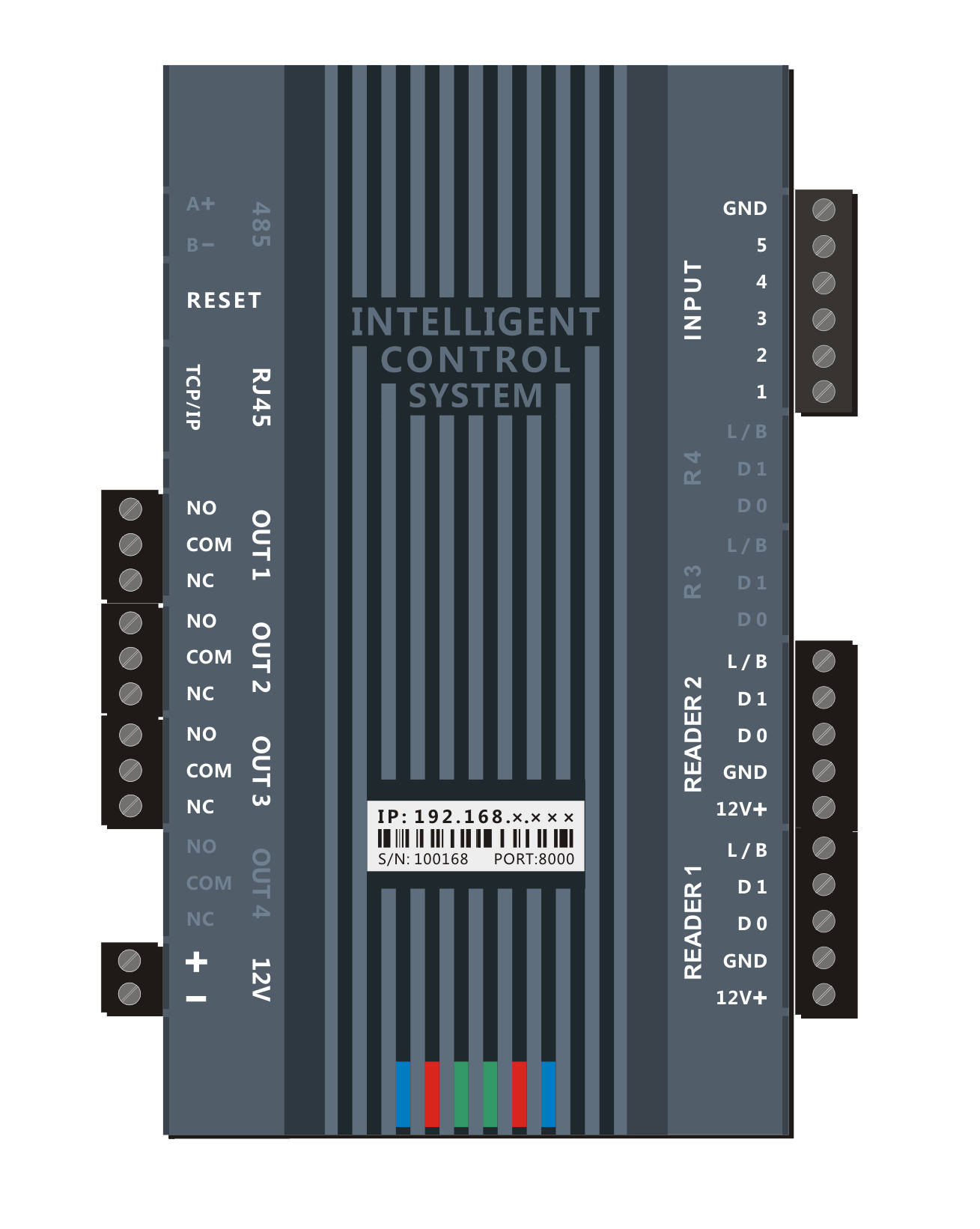

E01.NET-3-1 door 2 reader/ 2 door 2 reader/ turnstile gate controller
Short Description:
E01.NET–3 is a compact, network-based elevator access controller designed for managing 1 to 2 doors or turnstile gates. It supports TCP/IP communication, enabling integration with centralized security systems. This controller is suitable for buildings requiring efficient and secure access control solutions.
Spesification
- Control Capacity: Manages 1 to 2 doors or turnstile gates.
- Communication: TCP/IP protocol for network connectivity.
- Card Reader Support: Compatible with Wiegand 26/34/36/37/40 bit formats.
- User Capacity: Supports up to 120,000 users.
- Event Logging: Stores up to 200,000 event logs.
- Inputs: Includes 1 fire alarm input and 1 first-floor arrival input.
- Control Mode: Two-way controller with both computer and manual control options.
- Dimensions: 218mm × 135mm × 32mm.
- Relay Brand: Equipped with Hongfa relays for reliable performance.
Technical data
| Parameter | Detail |
|---|---|
| Model | E01.NET–3 |
| Control Capacity | 1 to 2 doors or turnstile gates |
| Communication | TCP/IP |
| Card Reader Support | Wiegand 26/34/36/37/40 bit formats |
| User Capacity | Up to 120,000 users |
| Event Logging | Up to 200,000 events |
| Inputs | 1 fire alarm input, 1 first-floor arrival input |
| Control Mode | Two-way controller (computer & manual) |
| Dimensions | 218mm × 135mm × 32mm |
| Relay Brand | Hongfa |
